Zambelli Refrigeration Units










Zambelli Brina 4.5 Refrigeration Monobloc

• Mounted structure in stainless steel
• Airtight compressor
• Copper coil evaporator immersed in insulated stainless steel tank
• Pump for water / brine circulation
• Electric control circuit with protection devices
• Inner visualizer (display) of the coolant circulation
• Control and safety pressostat with automatic restart
• Possibility for inversion of the cycle for heating up to 40°C
• Minimum working temperature: –10°C
• Maximum air temperature of condensation: +35°C
• Helicoidal ventilator
• Thermostatic expansion valve
– 3,8 Kw Compressor
– FRK/h Min/Max (-9 °C +10°C) 4000/12000
– 3 phase

Documentaion: Info Sheet – Zambelli Brina 45

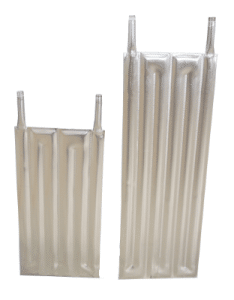

Cooling Plates


Cold plates serpentine, highly polished, 1mm thick AISI 304 (on request AISI 316). Ideal for conditioning, immersion for the control of the fermentation temperature, to be connected to refrigeration plants.

Material stainless steel AISI 304

  • TIG welding
  • electropolished
  • 1/2 ” fitting
  • Pressure 4 BAR max.

Available in different sizes from 0.8 to 4.8 m2 of surface cooling.

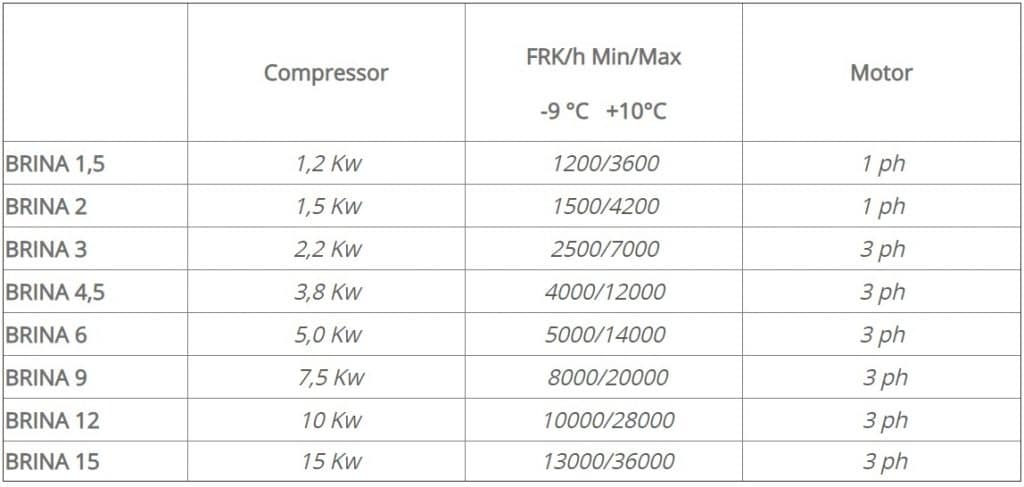

Zambelli Refrigeration Range Brochure
